1.Production Summary

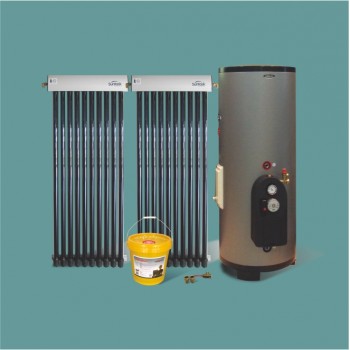

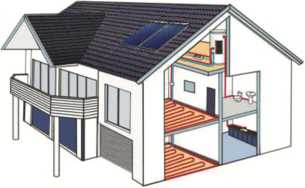

Split solar system specially design for family villa, Package configuration more convenient for customers choices.

2.Technology Core

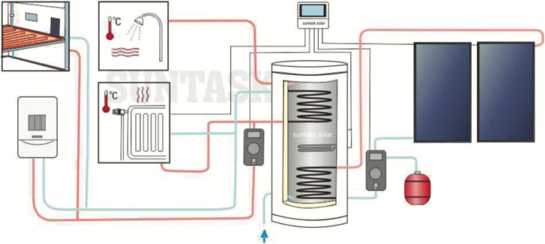

working principle:

•When the temperature of the heat collector reaches the set value, the controller shall start the circulation pump automatically.

•The circulation pump makes heat-conducting liquid circulate automatically.

•The heat-conducting liquid transfers heat to water by the heat exchanger in the water tank.

•In case the temperature of the collector does not reach the set value, the circulation pump shall be shut automatically.

•In case the temperature of the water tank does not reach T-max, then start the auxiliary heating device.

Solar split pressurized technology is an international upto-date application technology of the solar water heater at present. Installationof a split pressurized water heater has become the has become the main trend to the latest trend in European and American countries. It use the solar energy. Suntask split solar system-a private hot water reservoir is specially designed for the villa. It has a safe natural hot source that hot source that can provide continuous hot water supply for the villa daily using. Its collector harmonizeswith villa appearance

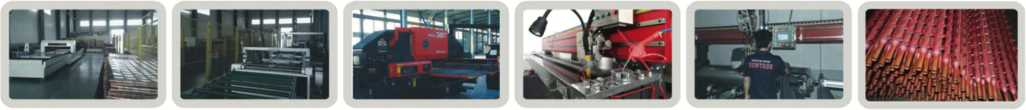

3.professional production

4.Optional Part:

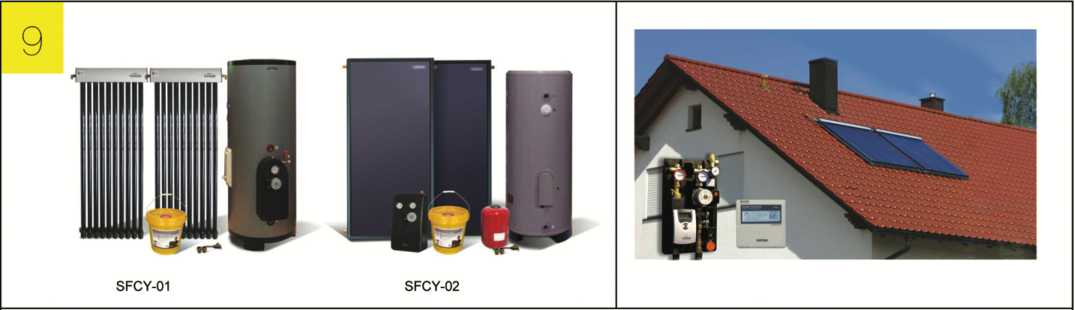

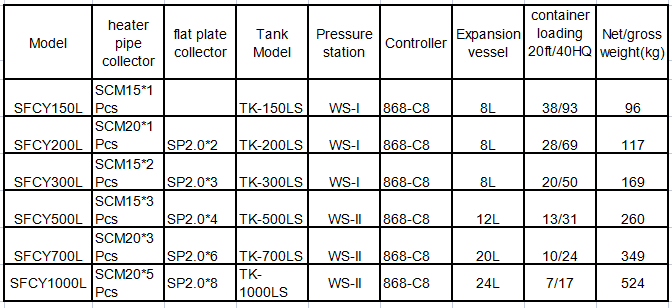

* SFCY-01 standard SCM-01 heat pipe collectors, SFCY-02 standard flat plate collectors. Custom-made available according to local climate •The price not include the pipeline and anti-frozen liquid for the installation.
