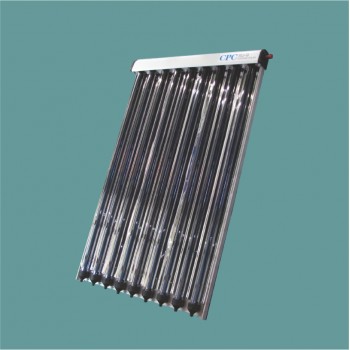

U- pipe collector

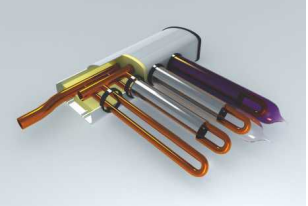

The U type series solar collector are always connected with existing heating supply device, The selective coating on the inner cover of the evacuated tube converts solar energy into heat energy and transfers heat to metal U tube by an aluminum fin. The liquid (usually aglycol water antifreeze mixture) in the metal U tube is heated, and conducts the heat energy to the water inside the storage tank through plate exchanger or internal spiral coils.
PDF DownLoad
Description

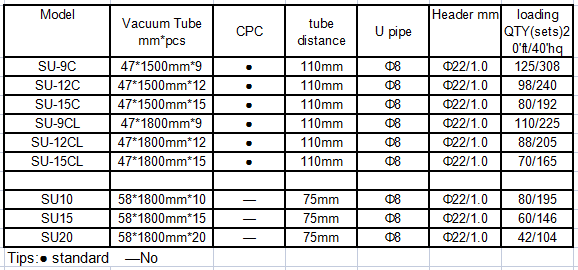

U-pipe collector SU SUC SUC-X

High efficient conduction,Inseparable and inconvenient transportation is the most disadvantage.



Feature:

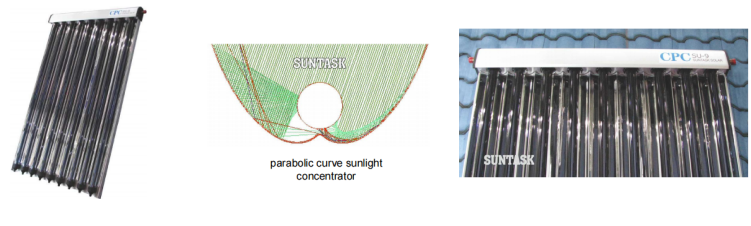

.360°absorber(CPC reflector)

.High energy yield

.High performance ratio

.Easier and faster modular installation

.Long lifetime and stable service

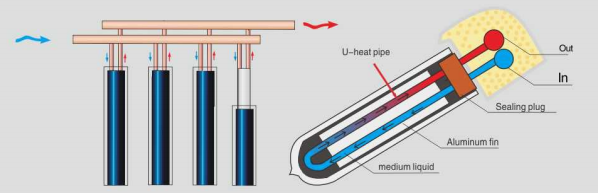

Working principle：

The U type series solar collector are always connected with existing heating supply device, The selective coating on the inner cover of the evacuated tube converts solar energy into heat energy and transfers heat to metal U tube by an aluminum fin. The liquid(usually aglycol water antifreeze mixture) in the metal U tube is heated, and conducts the heat energy to the water inside the storage tank through plate exchanger or internal colis.
