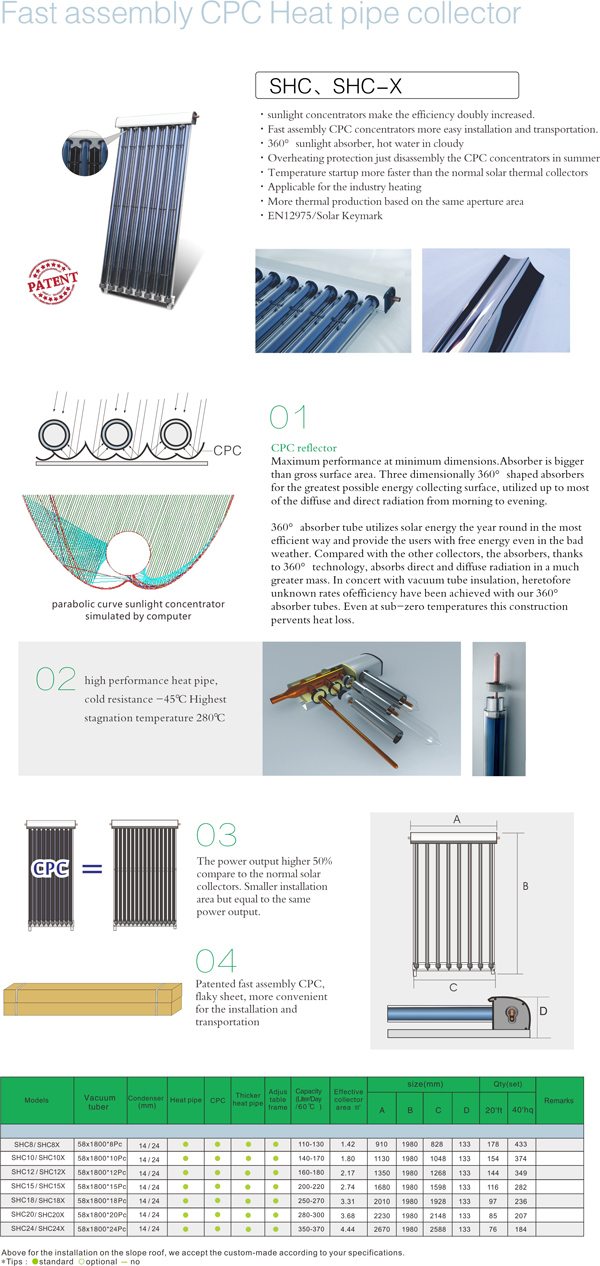

Fast assembly CPC Heat pipe collector SHC. SHC-X

Overheating solution, higher power output suitable less installation area, Industry heating applicable.

Features：

.Sunlight concentrators make the efficiency doubly increased.

.Fast assembly CPC concentrators more easy installation and transportation.

.360°sunlight absorber, hot water in cloudy

.Overheating protection just disassembly the CPC concentrators in summer

.Temperature startup more faster than the normal solar thermal collectors

.Applicable for the industry heating

.More thermal production based on the same aperture area

.EN12975/Solar Keymark

Technical parameters:

manifold (inner): red copper

manifold (exterior): aluminum alloy

glass tube dimensions: 58mm * 1800mm

daily efficiency: ≥55%

hail resistance: 25mm

max pressure: 12 bar

coating of vacuum tube: ALN/AIN-SS/CU

heat pipe: anti-freezing > -35 degree

working principle:

SHC advantages:

1.CPC reflector: Maximum performance at minimum dimensions. Absorber is bigger than gross surface area. Three dimensionally 360°shaped absorbers for the greatest possible energy collecting surface, utilized up to most of the diffuse and direct radiation from morning to evening.

360° absorber tube utilizes solar energy the year round in the most efficient way and provide the users with free energy even in the bad weather. Compared with the other collectors, the absorbers, thanks to 360° technology , absorbs direct and diffuse radiation in a much greater mass. In concert with vacuum tube insulation, heretofore unkown rates ofefficiency have been achieved with our 360° absorber tubes. Even at sub-zero temperatues this construction prevents heat loss.

2.High performance heat pipe, cold resistance -45℃。 Highest stagnation temperature 280℃.

3.The power output higher 50% compare to the normal solar collectors. Smaller installation area but equal to the same power output.

4.Patented fast assembly CPC, flaky sheet, more convenient for the installation and transportation

Fast assembly CPC collector Highest Power output
